TECHNICAL SPECIFICATIONS

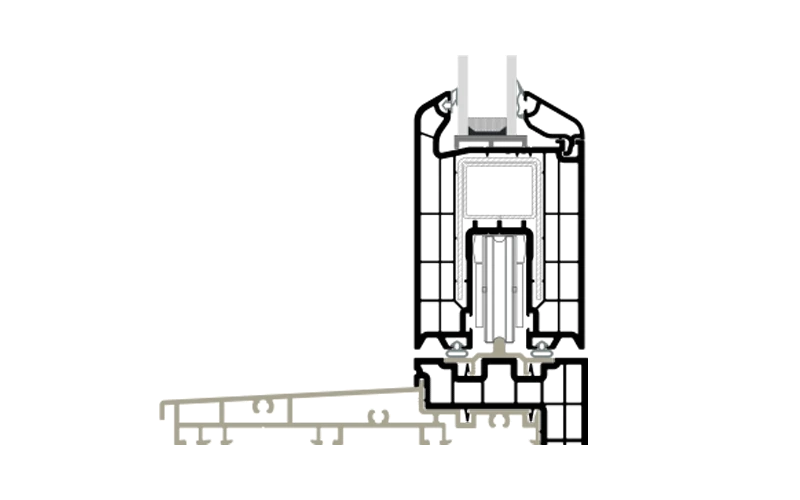

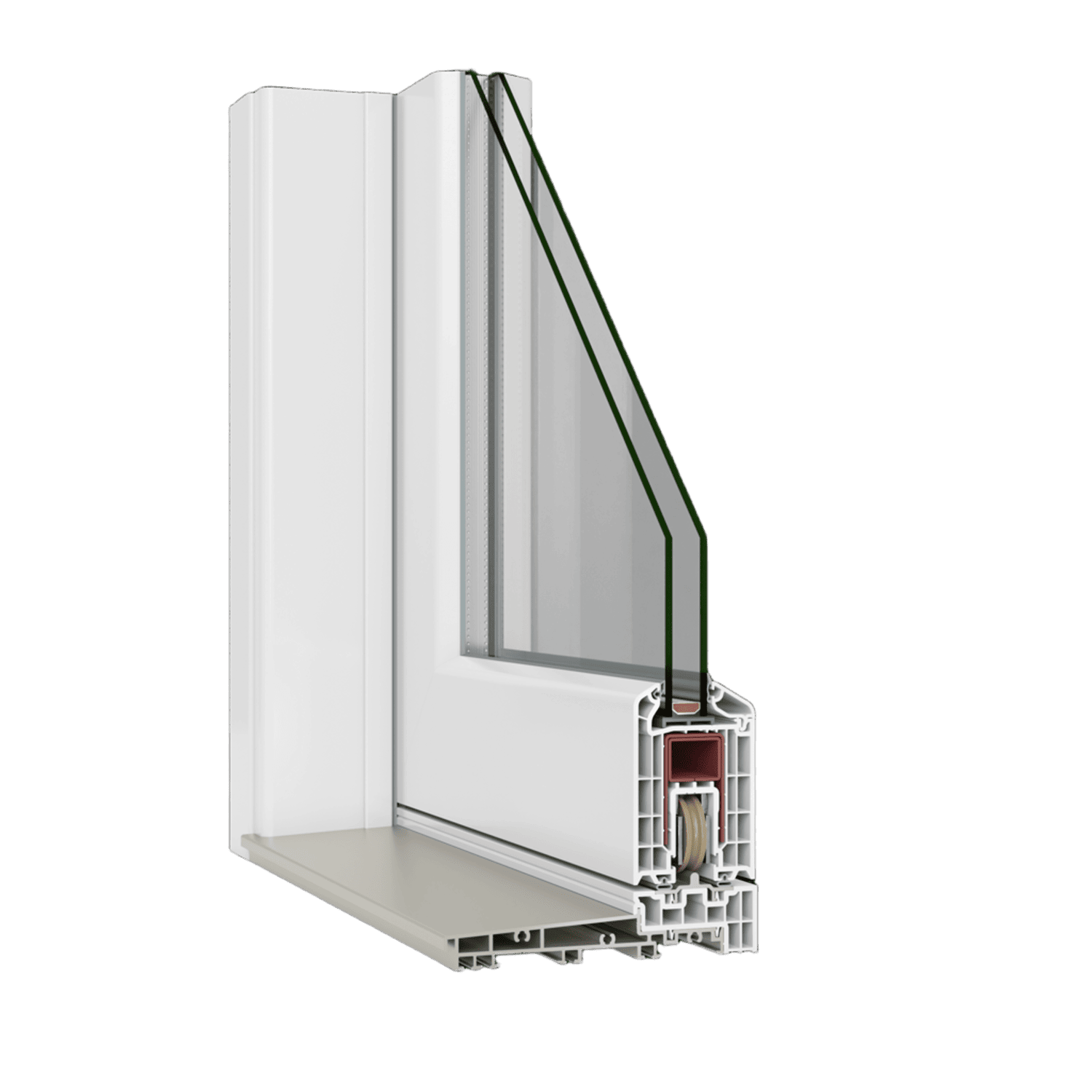

Frame Depth: Designed with a width of 170 mm and 6-7 chambers, offering strength and durability.
Door Leaf Profile: With a width of 70 mm and 5 chambers, it provides maximum sound and thermal insulation. Suitable for glass thicknesses ranging from 20, 24, 28, 34, to 40 mm.
Class A Quality: Frame and leaf profiles meet Class A quality standards with thick walls, ensuring long-lasting reliability.
Thermal Insulation: The aluminum threshold profile is enhanced with an internal PVC coating, delivering excellent thermal insulation.
Aesthetic Appearance: Screws used in frame installation are concealed beneath auxiliary profiles, ensuring a seamless and aesthetic exterior.
Easy Installation: Frame profiles are designed for easy transport and assembly, allowing for quick and practical installation on-site.
Wind Resistance: The special bent support steel in the leaf profiles provides high resistance to wind loads, ensuring safe use even in large openings.
Double Gasket System: The double gasket system used at the frame and leaf junctions ensures superior insulation performance.
These technical specifications make aluminum systems ideal for use in modern architecture, offering aesthetics, durability, and high performance in large spaces.
These technical specifications make aluminum systems ideal for use in modern architecture, offering aesthetics, durability, and high performance in large spaces.
- Profile Heat Transfer Coefficient: 1.5 W/m².K
- Glass Heat Transfer Coefficient: 31(-1,-6)
- Window Heat Transfer Coefficient: 2.57 W/m².K
- Air Permeability: 3
- Water Tightness: 7A
- Wind Load Resistance: C4/B5
- Acoustic Performance: 31[-1;-6] dB
